Get In Touch Directly
CS-M22323
R1,764.18 incl. VAT
Leadshine CS-M Series Closed-Loop Stepper Motor – NEMA 23 96mm Frame
In stock
Add to wishlistAdded to wishlist0
Add to compareAdded to compare0
SKU: OAP-MOT-0041
CS-M Series Closed-Loop Stepper Motor – NEMA 23 Frame
This 2-phase closed-loop stepper motor delivers precise, stable motion control for a wide range of industrial applications. Built with premium materials—including high-quality bearings and a robust shaft from renowned manufacturers—it ensures long service life and consistent performance.
Specifications
- Length: 96 mm (3.78 in)
- Phase Current: 5 A
- Holding Torque: 2.3 N·m (326 oz-in)
- Shaft Diameter: 8 mm (0.315 in)
- Encoder Options:
- 1,000-line differential rotary encoder (4,000 counts/rev) or
- 5,000-line differential rotary encoder (20,000 counts/rev)
- Integrated 1,000-line (4,000 counts/rev) quadrature rotary encoder included
Key Advantages
- High positioning precision
- Low motor heating for efficient operation
- Low vibration for smooth, quiet performance
The CS-M series combines robust construction with high accuracy, making it ideal for demanding industrial motion-control tasks.
For more info, documents or downloads, please visit Leadshine.com
Technical Specifications:
| Model | CS-M22323 |
| Series | CS-M |
| Phase | 2 phase |
| Frame Size (NEMA) | 23 |
| Length (mm) | 96 |
| Holding Torque (N · m) | 2.3 |
| Phase Current (A) | 5.0 |
| Shaft Diameter (mm) | 8 |
| Centre Diameter (mm) | 38.1 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (Ohm) | 0.38 |
| Inductance (mH) | 1.75 |
| Inertia (kg/cm2) | 0.48 |
| Weight（kg） | 1.3 |

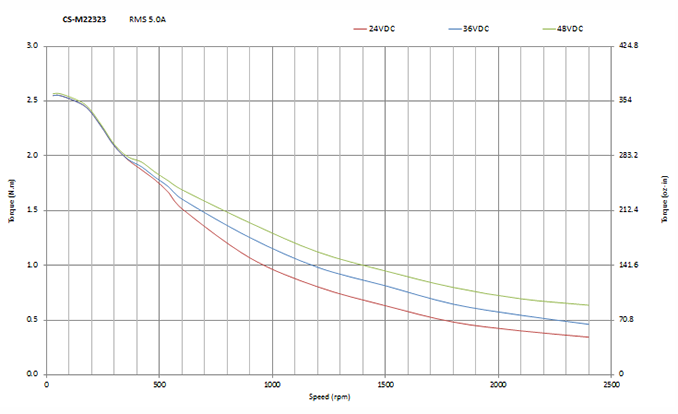

Speed-Torque Curve:
