CS-M22430
R2,205.23 incl. VAT
Leadshine NEMA 24 Closed-loop stepper motor
In stock
Add to wishlistAdded to wishlist0
Add to compareAdded to compare0
SKU: OAP-MOT-0042
CS-M Series Closed-Loop Stepper Motor – NEMA 24 (60 mm Frame)
This 2-phase closed-loop stepper motor delivers high precision and stable performance for a wide range of industrial applications. It is built with premium components, including high-quality bearings and a durable shaft from well-known manufacturers.
Specifications
- Length: 107 mm (4.21 in)
- Phase Current: 5 A
- Holding Torque: 3 N·m (425 oz-in)
- Shaft Diameter: 8 mm (0.315 in)
- Encoder Options:
- 1,000-line differential rotary encoder (4,000 counts/revolution) or
- 5,000-line differential rotary encoder (20,000 counts/revolution)
Key Advantages
- High positioning accuracy
- Low motor heating
- Low vibration for smooth motion
This combination of precise feedback, robust construction, and efficient operation makes the CS-M series ideal for demanding motion-control tasks.
For more info, documents or downloads, please visit Leadshine.com
Technical Information
| Model | CS-M22430 |
| Series | CS-M |
| Phase | 2 phase |
| Frame Size (NEMA) | 24 |
| Length (mm) | 107 |
| Holding Torque (N · m) | 3.0 |
| Phase Current (A) | 5.0 |
| Shaft Diameter (mm) | 8 |
| Centre Diameter (mm) | 36 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (Ohm) | 0.46 |
| Inductance (mH) | 2.00 |
| Inertia (kg/cm2) | 0.69 |
| Weight（kg） | 1.6 |

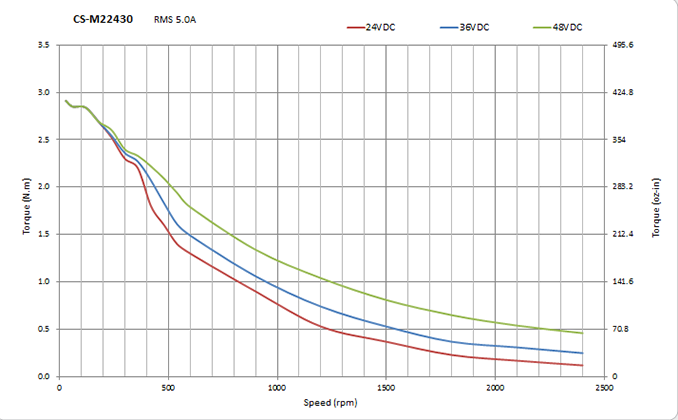

Speed-Torque Curve
