CS-M23445
R2,401.25 incl. VAT
Leadshine NEMA 34 Closed-loop Stepper Motor
In stock
Add to wishlistAdded to wishlist0
Add to compareAdded to compare0
SKU: OAP-MOT-0043
CS-M Series Closed-Loop Stepper Motor – NEMA 34 Frame
This 2-phase closed-loop stepper motor combines powerful performance with precise control, making it suitable for a wide range of industrial applications. It is built with premium materials, including high-quality bearings and a durable shaft from leading manufacturers.
Specifications
- Length: 109 mm (4.29 in)
- Phase Current: 6 A
- Holding Torque: 4.5 N·m (638 oz·in)
- Shaft Diameter: 14 mm (0.551 in)
- Encoder Options:
- 1,000-line differential rotary encoder (4,000 counts/rev) or
- 5,000-line differential rotary encoder (20,000 counts/rev)
- Integrated 1,000-line (4,000 counts/rev) quadrature rotary encoder included
Key Advantages
- High precision positioning
- Low motor heating for efficient operation
- Low vibration for smooth, quiet motion
The CS-M series delivers accurate feedback and dependable motion control in demanding environments.
Technical Data:
| Model | CS-M23445 |
| Series | CS-M |
| Phase | 2 phase |
| Frame Size (NEMA) | 34 |
| Length (mm) | 109 |
| Holding Torque (N.m) | 4.5 |
| Phase Current (A) | 6.0 |
| Shaft Diameter (mm) | 14 |
| Center Diameter (mm) | 60 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (Ohm) | 0.43 |
| Inductance (mH) | 2.95 |
| Inertia (kg/cm2) | 1.40 |
| Weight（kg） | 2.7 |

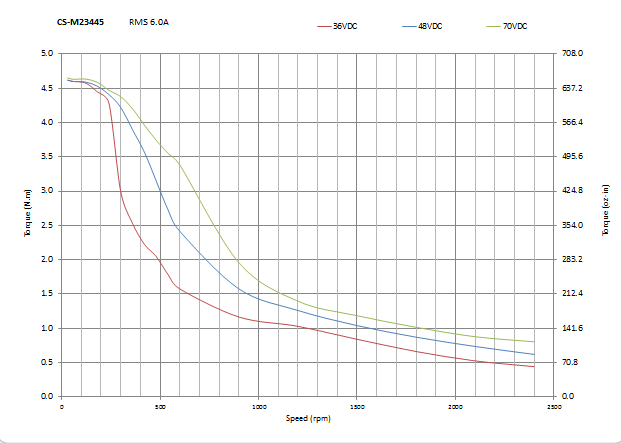

Speed-Torque Curve:
For more info, downloads or documents, please visit Leadshine.com.
