EL7-EC1000N

Leadshine EL7-EC Series AC Servo Drive – 220 V, 1-Phase

The EL7-EC Series is a high-performance 220 V single-phase AC digital servo drive designed for precise position, velocity, and torque control.
With power ratings up to 2 kW, it offers an ideal solution for applications requiring accurate motion and easy tuning.

Key Features

• Power Range: 400 W – 2 kW
• Protocol Support: ETG CoE + EtherCAT DSP402, enabling seamless integration with any controller or drive supporting this standard.
• Advanced Hardware: Latest DSP chip and Intelligent Power Module (IPM) for compact design, reliability, and efficient Pulse Width Modulation (PWM) with optimised PID control.
• User I/O: 4 DI, 3 DO, and 2 high-speed touch probe inputs via DB15 I/O port
• USB Type-C tuning port for quick, stable configuration
• Built-in regenerative resistor for energy efficiency

Control Functions

• Position, velocity, and torque loop control
• Zero Tracking Control (ZTC)
• Vibration suppression (mechanical resonance & end vibration)
• Friction compensation
• Automatic gain adjustments

Motor Compatibility

• Pairs with Leadshine AC servo motors rated 30 W – 1 kW
• Motors feature 23-bit magnetic or optical encoders
• Optional holding brake available

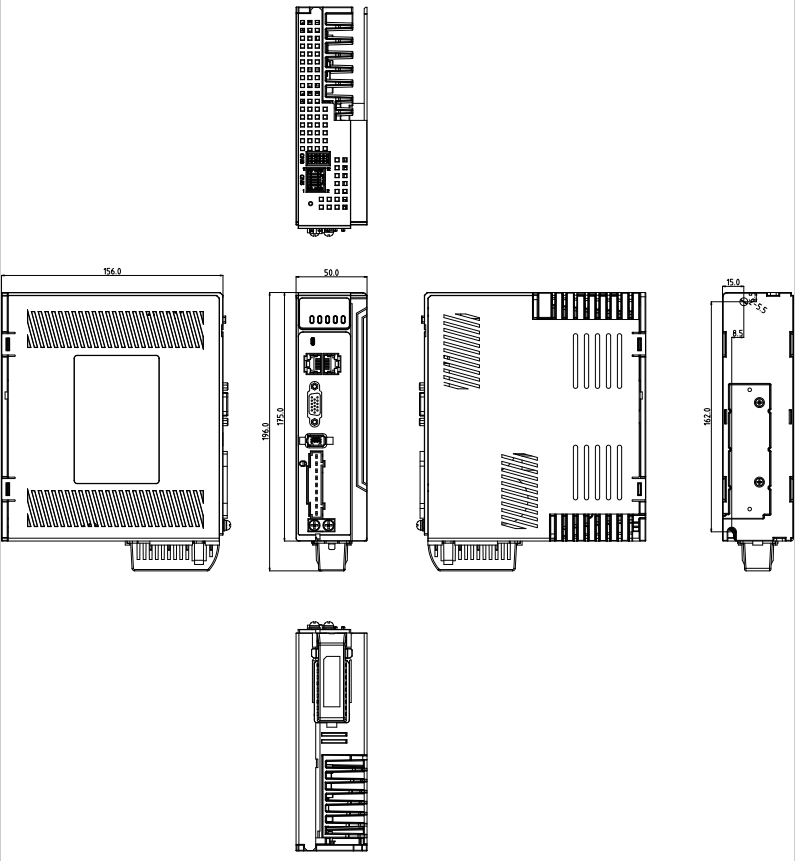

Technical Specifications:
