ELM1H-1000MA80E
R5,341.55 incl. VAT
Leadshine ELM1H-1000MA80E 1000w AC Servo Motor – with Brake
In stock
Add to wishlistAdded to wishlist0
Add to compareAdded to compare0
SKU: OAP-MOT-0028
Leadshine ELM1H-1000MA80E 1000w AC Servo Motor
Designed and manufactured by Leadshine with proprietary technology, the ELM1H series AC servo motors use rare-earth neodymium-iron-boron permanent-magnet rotors to deliver high torque density, strong peak torque, and low-noise, energy-efficient operation. Their low temperature rise and reduced current draw make them ideal for demanding automation applications.
Key Specifications:
- Rated Voltage: 220 VAC
- Rated Power: 1,000 W
- Frame Size: 80 mm
- Rated Torque: 3.18 N·m
- Rated Speed: 3,000 r/min
- Encoder: 23-bit magnetic absolute encoder
- Brake: Integrated holding brake
- Connector Type: Direct connector
- Protection Class: IP67 (dust-tight and water-resistant)
- Overload Capacity: High overload tolerance for dynamic loads
The ELM1H-1000MA80E provides precise motion control and long-term reliability in a compact package—perfect for industrial automation where a holding brake is required.
Technical Specifications:
| Model | ELM1H-1000MA80E |
| Frame Size (mm) | 80 |
| Rated Voltage (Vac) | 220 |
| Rated Power (W) | 1000 |
| Rated Torque (N.m) | 3.18 |
| Peak Torque (N.m) | 9.54 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 5000 |
| Rated Current (Amp) | 5.7 |
| Peak Current (Amp) | 17.7 |
| Torque Constant (N.m/Amp) | 0.56 |
| Back EMF Constant (V/krpm) | 38.3 |
| Resistance (Ω) | 1.08 |
| Inductance (mH) | 5.6 |
| Inertia (kg*m2*10-4) | 2.15 |
| Poles | 10 |
| Encoder Type | 23bit  magnetic |
| IP Rating | IP67 |
| Weight (Kg) | 3.4 |

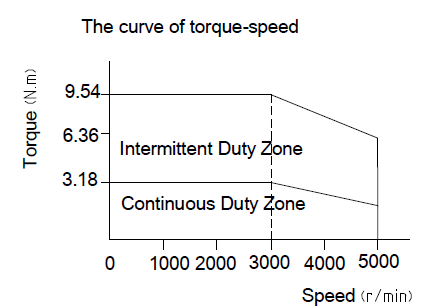

Speed-Torque Curve:
