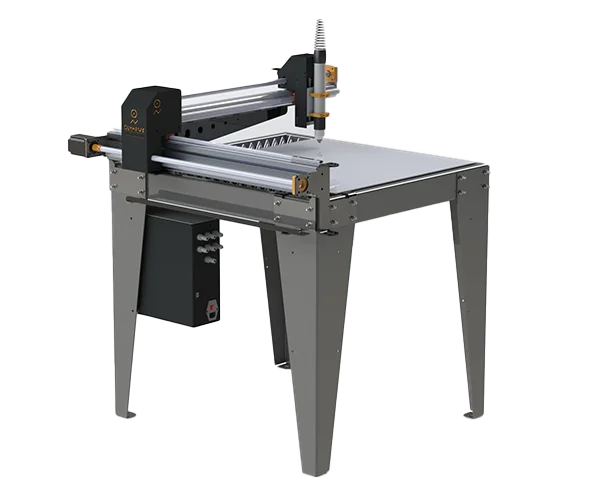

Vulkan VN-H CNC plasma table

Introducing the Vulkan VN-H Plasma Series, the ultimate solution for hobbyist metalworkers and small-scale businesses seeking precise cutting capabilities for small parts up to 10mm* thick. Designed to seamlessly integrate into your home garage, this series offers exceptional performance in a compact package.

With features like the waterbed for minimal smoke pollution and increased consumable life, the VN-H Series is perfect for use in poorly ventilated areas. Its lightweight yet rigid design allows for easy maneuvering, while still supporting the weight of a full-size 8mm mild steel sheet. Experience the unique design that enables cutting up to 1/8th of a standard mild steel sheet at a time .*Thickness may vary depending on material and settings.
Starting at R65 000
Specifications VN-H
Design 4mm Laser cut and bent mild steel
Motion Leadshine stepper motors
Power supply 220VAC 1Ph 16A
Work table Waterbed
Controller MyPlasmCNC
CAD/CAM Software MyPlasmCNC
Plasma Power pack Thermacut 40SD
Max Rapid speed 6 000 mm/min
Cutting Dimensions 600mm x 600mm
Physical Dimensions 950mm x 850mm x 1000mm
Max cutting thickness 8mm Pierce cut and 10mm Edge cut
Optional extras
Integrated Torch Height Control
Laser Pointer
Magnetic torch breakaway
Z Axis ohmic material sensor
Pre-loaded cut charts
Thermacut Plasma cutters
All of our Vulkan CNC plasma tables come standard with trusted Thermacut plasma cutting systems. Known for their reliability, performance, and cost-effective design.
Stability You Can Count On
Designed with the home workshop in mind, the VULKAN VN-H offers rock-solid stability and reliable performance in a compact footprint—perfect for hobbyists and small-scale fabricators.
Built-In Water Bed
Reduces smoke, heat, and warping for cleaner cuts and a safer, more efficient workspace.
